商品の詳細

Created with Pixso. 家へ Created with Pixso. 製品 Created with Pixso.
サンダースクリュー洗浄機
Created with Pixso.

oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h

名前

oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h

ブランド名: WeSeW
モデル番号: カイ001
MOQ: 1個
価格: US$20,000~US$80,000 per pc
支払条件: T/T、ウェスタンユニオン
供給能力: 10000個/月
詳細情報
製品説明
詳細情報
起源の場所:
中国
証明:
CE,UL
材料:
ステンレス鋼/カスタム
材料機能:
耐熱性、耐火性
応用:
化学産業、穀物輸送、鉱業輸送、発電所
コアコンポーネント:
モーター
寸法(長さ*幅*高さ):
カスタマイズされた
仕様:
カスタマイズされた
名前:
サンダースクリュー洗浄機
パッケージの詳細:
木製ケース
供給の能力:
10000個/月
ハイライト:

spiral sand washing machine with gears

,

sand screw washer for river pebbles

,

granite sand washer 40-300t/h

製品説明
Spiral Sand Washing Machine
High-quality OEM spiral sand washing equipment with gears and pumps, designed for processing river pebbles, limestone, and granite with a washing capacity of 40-300t/h.
Product Overview
Customized industrial mineral river silica sand spiral washing machine designed for construction, highway projects, hydropower plants, and sand and gravel operations with low investment requirements.
The Spiral Sand Washing and Recycling Machine integrates sand washing, fine sand recovery, and dehydration technologies. This advanced system features compact design, clean final products, minimal fine sand loss, high capacity, extended service life, and reduced maintenance costs.
Technical Specifications
Motor Type AC Motor
Capacity 40-300t/h
Core Components PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Weight 128000 KG
Warranty 1 Year
Video Inspection Provided
Machinery Test Report Provided
Dimensions (L×W×H) Customizable to requirements
Application Sand Washing
Usage Remove Dirty Soil
Raw Material Limestone, bluestone, river pebbles, granite, etc.
Quality High Level
Key Features
  • High cleaning efficiency: Effectively removes dirt, clay, and organic impurities from sand to improve quality
  • Large processing capacity: Handles from several tons to several hundred tons per hour depending on model
  • Low power consumption: Energy-efficient operation reduces operating costs
  • Minimal sand loss: Advanced design preserves fine sand and reduces material waste
  • Durable construction: Wear-resistant steel components ensure long service life with minimal maintenance
  • Eco-friendly operation: Incorporates water recycling systems and energy-efficient motors

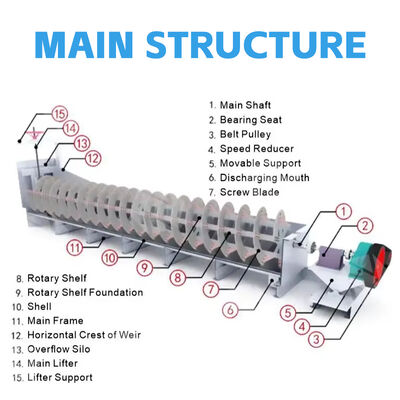

Working Principle
The Spiral Sand Washer operates through a synergistic process of agitation, settling and material transportation:
  1. Sand-cement slurry enters the inclined trough
  2. Rotating spiral blades agitate the mixture while gravity settles heavier sand particles
  3. Lighter impurities remain in suspension and are washed away
  4. The spiral conveyor lifts cleaned sand while discharging excess water
  5. Process delivers dewatered, purified material ready for downstream processing
Applications
  • Construction Aggregate Production: Purifies raw quarry material for concrete, asphalt or mortar
  • Mineral Processing: Washes crushed ore to separate waste rock in mining operations
  • Industrial Sand Processing: Produces high-purity sand for glass manufacturing and foundry applications
Environmental Protection
Our spiral sand washers incorporate comprehensive environmental safeguards including closed-loop water recycling systems with sedimentation tanks, dust suppression through sprinklers and enclosed conveyors, noise reduction technology, wastewater treatment with chemical flocculation and pH balancing, energy-efficient motors, and waste segregation programs.
Quality Assurance
Machinery Test Report Provided
Video Inspection Provided
After-sales Service Engineers available to service machinery overseas with full lifecycle support
Product Gallery
oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 0 oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 1 oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 2 oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 3 oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 4 oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 5 oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 6 oem spiral sand washing machine with gears and pumps is a high-quality spiral sand washing equipment, suitable for river pebbles, limestone, granite, with a sand washing capacity of 40-300t/h 7
