Sand screw Washer Spiral Sand Washing Machine high cleaning efficiency Energy Saving Mining Equipment wear-resistant steel Screw Sand Washer Machine for Gravel Pebble Basalt

ブランド名:	WeSeW
モデル番号:	カイ001
MOQ:	1pcs
価格:	US$20,000~US$80,000 per pc
支払条件:	T/T、ウェスタンユニオン
供給能力:	1か月あたり10000pc

詳細情報

製品説明

詳細情報

起源の場所:

中国

証明:

CE,UL

材料:

ステンレス鋼/カスタム

材料機能:

耐熱性、耐火性

応用:

化学産業、穀物輸送、鉱業輸送、発電所

コアコンポーネント:

モーター

寸法（l*w*h）:

カスタマイズ

仕様:

カスタマイズ

構造:

コンベアシステム

パッケージの詳細:

木製のケース

供給の能力:

1か月あたり10000pc

製品説明

Sand screw Washer Spiral Sand Washing Machine high cleaning efficiency Energy Saving Mining Equipment wear-resistant steel Screw Sand Washer Machine for Gravel Pebble Basalt

Spiral Sand Washing Machine is a type of equipment used to clean and separate dirt, dust, and other impurities from sand, gravel, or crushed stone. It utilizes a rotating screw (auger) to lift and wash the material while water is added to remove contaminants. This machine is widely used in construction, mining, and aggregate industries to improve the quality of sand for concrete production and other applications.

The double-screw sand washer is a high-efficiency industrial solution for washing fine sand, gravel, grit, and silica. This robust equipment operates on the principle of differential sedimentation velocity to classify particles between 1.5mm-0.03mm, effectively separating waste mud and water from valuable ores.

Feature highlights:The Spiral Sand Washing Machine is designed for high cleaning efficiency, effectively removing dirt, clay, and organic impurities from sand to improve quality. It features a durable build with wear-resistant steel, ensuring long-lasting performance in harsh conditions. The machine incorporates eco-friendly measures such as water recycling systems, sedimentation tanks, and energy-efficient motors, reducing environmental impact while maintaining operational effectiveness.

Product Specifications

Product Name	Industrial Spiral Screw Classifier Sand Washing Machine
Key Feature	Spiral sand washing machine
Motor Type	AC Motor
Capacity	6-400t/h
Core Components	Bearing, Gearbox, Motor
Weight	500 KG
Applications	Motorway construction, hydropower projects, building material washing, classification, and contaminant removal

Advantages of spiral sand washing machine

High cleaning Efficiency-Effectively removes dirt, clay and organic impurities from sand, improving product quality.
Low water consumption-Compared with other sand washing methods, less water is used, making it more environmentally friendly.
Simple structure and easy maintenance-Fewer moving parts reduce wear and tear, lowering maintenance costs.
Durable and long-lasting - Made of high quality materials (wear-resistant steel) to withstand harsh working conditions.

Spiral sand washing machine measures to protect the environment


 Spiral sand washers, critical in aggregate processing, require robust environmental safeguards. Key measures include water recycling systems with closed-loop circuits and sedimentation tanks to minimize freshwater use and wastewater discharge. Dust suppression via sprinklers and enclosed conveyors curtails airborne particulates, while noise-dampening tech mitigates operational noise. Wastewater treatment integrates chemical flocculation and pH balancing to ensure compliance with eco-discharge standards. Energy-efficient motors and renewable energy sources (e.g., solar) reduce carbon footprints. Waste segregation and by-product repurposing (e.g., silts for landfill covers) promote circularity.

What is the Working Principle of The Spiral Sand washer
 The Spiral Sand Washer operates through a synergistic process of agitation, settling and material transportation. As the sand-cement slurry enters the inclined trough, the rotating spiral blades agitate the mixture, utilizing gravity to settle the heavier sand particles to the bottom of the trough. Lighter impurities (silt, clay, debris) remain in suspension and are washed away by the continuous flow of water, ensuring separation. The rotating spiral also acts as a conveyor, lifting the settled sand up the slope and discharging excess water through the tank holes. This dual action cleans the sand and reduces its moisture content, delivering dewatered, unadulterated material at the discharge end for downstream processing.

Construction Aggregate Production: Used in sand/gravel plants to purify raw quarry material for concrete, asphalt or mortar.
Removal of silt/clay to meet <5% penalty standards ensures durable building materials with optimum grade and moisture control.
Mineral Processing and Ore Refining: Critical in mines (e.g. iron, copper) to wash crushed ore to separate waste rock (veins).

Technical Parameters

Model

Spiral diameter(mm)

Water tank length(mm)

Feed size(mm)

Spiral speed (r/min)

Processing capacity (t/h)

Moto power (kw)

LX915

915

7585

10

21

100

11

2LX915

915

7585

10

21

200

11*2

LX1115

1115

7620

10

17

175

15

2LX1115

1115

7620

10

17

350

15*2

LX1500

1500

7680

10

12

  50-150

18.5

2LX1500

1500

7680

10

12

100-300

18.5*2

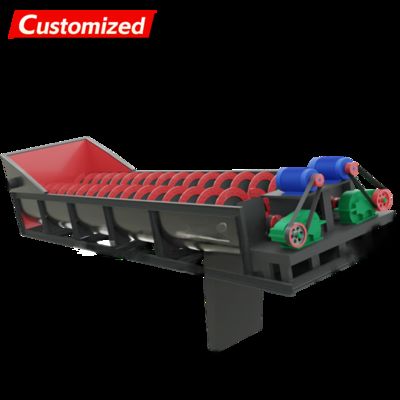

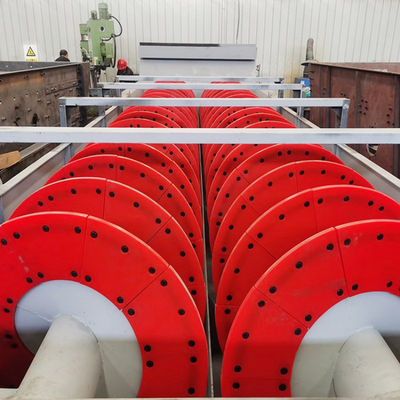

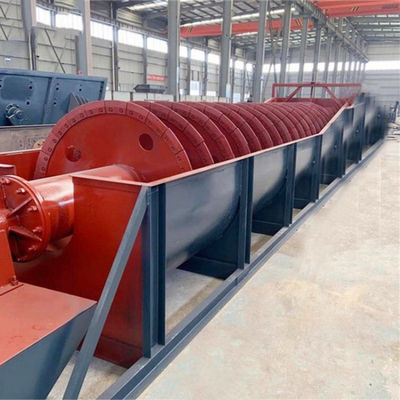

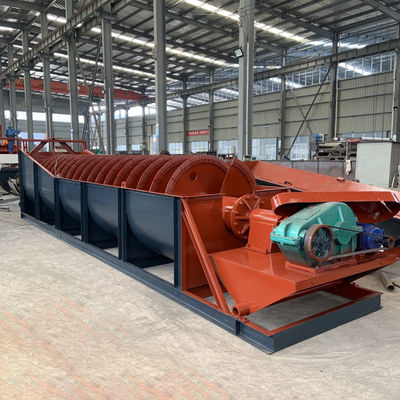

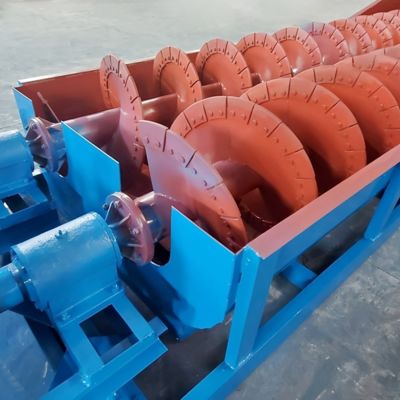

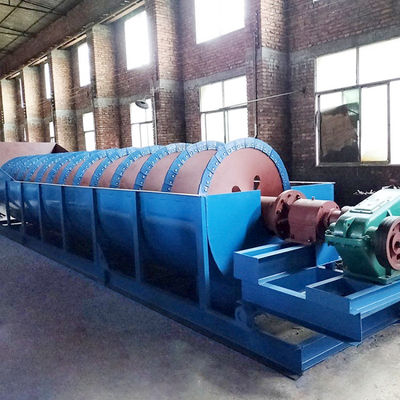

Product Gallery

Sand screw Washer Spiral Sand Washing Machine high cleaning efficiency Energy Saving Mining Equipment wear-resistant steel Screw Sand Washer Machine for Gravel Pebble Basalt 0

Sand screw Washer Spiral Sand Washing Machine high cleaning efficiency Energy Saving Mining Equipment wear-resistant steel Screw Sand Washer Machine for Gravel Pebble Basalt 1

Sand screw Washer Spiral Sand Washing Machine high cleaning efficiency Energy Saving Mining Equipment wear-resistant steel Screw Sand Washer Machine for Gravel Pebble Basalt 2

Sand screw Washer Spiral Sand Washing Machine high cleaning efficiency Energy Saving Mining Equipment wear-resistant steel Screw Sand Washer Machine for Gravel Pebble Basalt 3

Sand screw Washer Spiral Sand Washing Machine high cleaning efficiency Energy Saving Mining Equipment wear-resistant steel Screw Sand Washer Machine for Gravel Pebble Basalt 4

Sand screw Washer Spiral Sand Washing Machine high cleaning efficiency Energy Saving Mining Equipment wear-resistant steel Screw Sand Washer Machine for Gravel Pebble Basalt 5
