Customizable Stainless Steel Heat Resistant Auger Screw Feeder and Spiral Conveyor for Industrial Use

Customizable Stainless Steel Heat Resistant Auger Screw Feeder and Spiral Conveyor for Industrial Use

ブランド名: WeSeW
モデル番号: KF001-2
MOQ: 1個
価格: US$800~US$8,000 per pc
支払条件: T/T、ウェスタンユニオン
供給能力: 月あたり10,000個
詳細情報
起源の場所:
中国
証明:
CE/UL
材料:
ステンレス鋼
素材の特徴:
耐熱性、耐火性
応用:
化学工業、穀物輸送、鉱山輸送、発電所
該当する業種:
製造工場、建設
機械試験報告書:
提供された
コアコンポーネント:
ベアリング、ギアボックス、モーター
寸法(長さ*幅*高さ):
カスタマイズされた
スパイラル直径:
カスタマイズ
仕様:
カスタマイズされた
カスタマイズ:
利用可能なカスタマイズされたリクエスト
パッケージの詳細:
木製ケース
供給の能力:
月あたり10,000個
製品説明

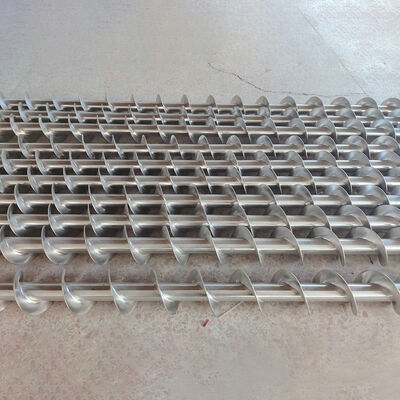

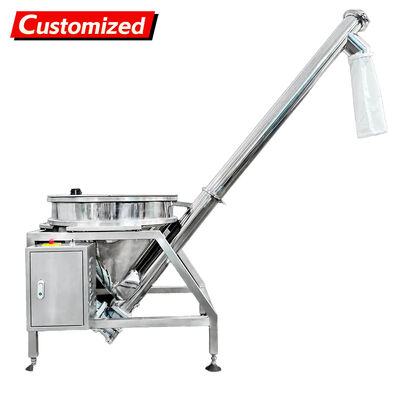

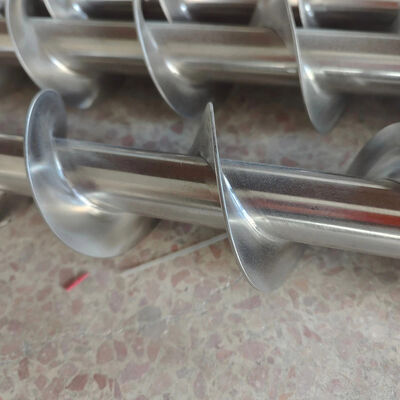

Custom SUS304 Auger Screw Vibrating Inclined Feeder Round Bucket Feeder Conveyor

This customizable SUS304 stainless steel spiral vibrating inclined feeder conveyor is specifically designed for industries with high hygiene requirements such as food processing and plastics manufacturing. It primarily handles the lifting and conveying of powdery materials. The entire machine is constructed from 304 stainless steel, meeting industry clean production standards.

Core Structure and Configuration Features
Feeding System: Equipped with a circular hopper and built-in vibration device to prevent powdery materials from bridging and clogging, ensuring continuous and smooth feeding. The hopper volume can be adjusted according to production capacity requirements, with a standard configuration of 180L.
Conveying Structure: Utilizes a spiral lifting design, supporting inclined feeding. The standard inclination angle is 45°, customizable within the range of 30°-60° according to project needs. Conveying pipe diameters are available in 89mm, 114mm, and 133mm specifications. Lifting heights are customizable from 1-5m, with support for even greater heights.
Convenient Design: Employs a quick-release connection structure, making daily cleaning and maintenance very convenient. A semi-open design is also available to adapt to different process scenarios.
Technical Specifications
Parameter Specification
Rated Conveying Capacity Up to 2.3 cubic meters per hour
Power Configuration Three-phase 380V 1.5KW
Electric Vibrator 55W
Total Weight 130KG
Construction Compact structure with strong installation adaptability
