Customized Stainless Steel Screw Conveyor with Hopper for Food Grade Material Handling

Customized Stainless Steel Screw Conveyor with Hopper for Food Grade Material Handling

ブランド名: WeSeW
モデル番号: KF001-2
MOQ: 1個
価格: US$800~US$8,000 per pc
支払条件: T/T、ウェスタンユニオン
供給能力: 月あたり10,000個
詳細情報
起源の場所:
中国
証明:
CE/UL
型番:
KF001-2
材料:
ステンレス鋼
素材の特徴:
耐熱性、耐火性
応用:
化学工業、穀物輸送、鉱山輸送、発電所
状態:
新しい
該当する業界:
製造工場、建設
機械試験報告書:
提供された
コアコンポーネント:
ベアリング、ギアボックス、モーター
寸法(長さ*幅*高さ):
カスタマイズされた
スパイラル直径:
カスタマイズ
輸送パッケージ:
木箱
仕様:
カスタマイズされた
商標:
ウェセウ
起源:
中国
供給の能力:
500000/年
パッケージサイズ:
100.00cm * 100.00cm * 50.00cm
パッケージ総重量:
50.000kg
アフターサービス:
提供された
保証:
1年
構造:
コンベアシステム
カスタマイズ:
利用可能なカスタマイズされたリクエスト
送料:
送料と配達予定日について。
通貨:
US $
返品・返金:
商品到着後30日以内であれば返金を申請できます。
パッケージの詳細:
木製ケース
供給の能力:
月あたり10,000個
製品説明

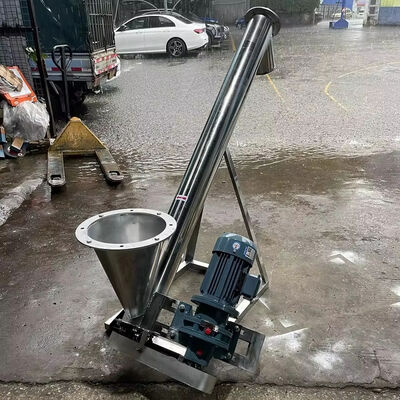

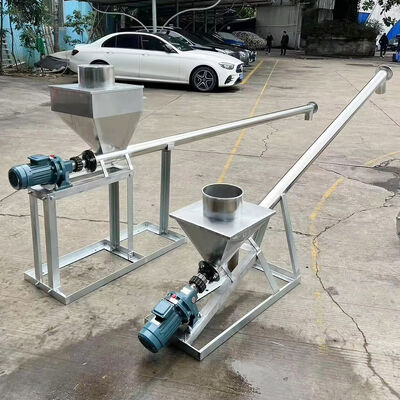

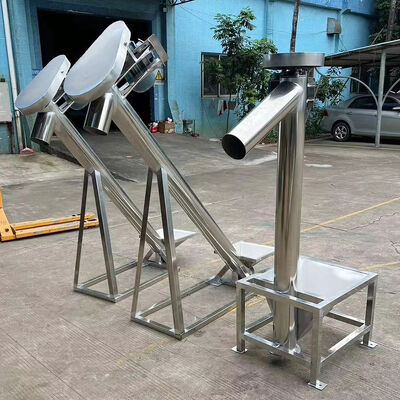

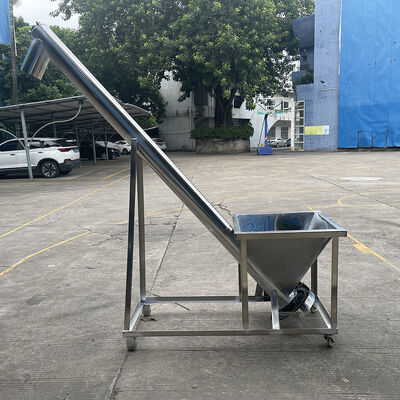

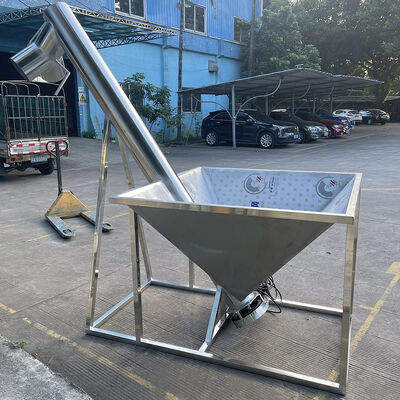

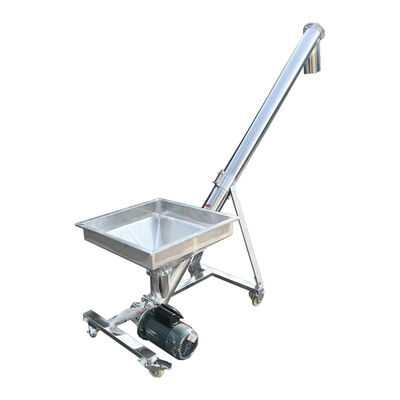

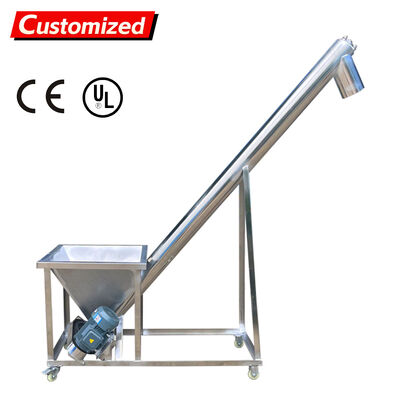

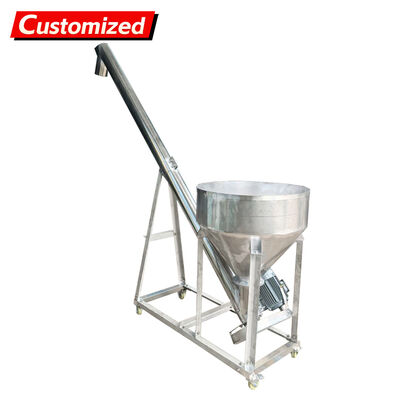

Customized Screw Conveyor with Hopper
Designed for conveying flour, stainless steel-compatible materials, and various food ingredients.
Specifications
Model 110mm 140mm 160mm 219mm 273mm
Material Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
Motor Power 1.5-2.2kw 1.5-2.2kw 2.2-3kw 3-4kw 5.5-7.5kw
Hourly Output 1t/h 1.5-2t/h 2-3t/h 3-5t/h 5-8t/h
The length of the material pipe, lifting height, and hopper size can be customized according to requirements. Customization based on drawings is also supported.
Core Performance Advantages
  • Hygienic and Corrosion-Resistant Materials: Entire machine made of 304/316L stainless steel with mirror-polished circular hopper and conveyor body. Eliminates dead corners, resists acid and alkali corrosion, meets food and pharmaceutical-grade hygiene standards, enables CIP in-situ cleaning.
  • High-Efficiency Anti-Clogging Design: Large-diameter circular hopper with variable pitch spiral blades ensures uniform material handling and prevents bridging. Suitable for various materials including grains, urea granules, and plastic powders, improving conveying efficiency by 20%.
  • Sealed, Environmentally Friendly & Low-Consumption: Fully enclosed tubular structure with flange-sealed connections prevents material leakage and dust. Modular structure for easy disassembly, wear-resistant key components, low noise operation, and 30% reduced maintenance costs.
  • Flexible Adaptation to Various Scenarios: Supports horizontal and ≤20° inclined installation. Can be equipped with vibrating feeding device for small batch multi-variety materials. Single machine conveying length up to 70 meters.
Typical Application Scenarios
  • Food Processing: Transfer of raw materials such as grains, flour, and milk powder within workshops. Sealed transportation avoids dust contamination and ensures food safety.
  • Fertilizer Production: Precise feeding of urea granules and compound fertilizers. Corrosion-resistant materials suitable for chemical environments, ensuring stable delivery.
  • Plastic Manufacturing: Inter-process conveying of plastic powders and granules. Prevents materials from getting damp and dust from leaking, ensuring product purity.
  • Pharmaceutical & Chemical Industries: Clean transportation of pharmaceutical powders and chemical raw materials. Complies with GMP certification requirements to avoid cross-contamination.
Product Gallery
