Custom OEM Flexible Star Couplings with 2000n-m Rated Torque 5000 RPM Maximum Speed and Lubrication-Free Maintenance for Shaft Couplings

ブランド名:	WeSeW
モデル番号:	CNC0184
MOQ:	1個
価格:	US$5~US$50 per pc
支払条件:	T/T、ウェスタンユニオン
供給能力:	月あたり10,000個

詳細情報

製品説明

詳細情報

起源の場所:

中国

証明:

CE, ISO9001/UL

名前:

フレキシブルスターカップリング

OEM/ODM:

OEM ODM CNC フライス盤旋盤加工サービス

材料の能力:

アルミニウム、真鍮、青銅色、銅の、堅くされた金属

応用:

金属切断機械,金属直線機械,金属スピニング機械,金属加工機械の部品,金属鍛造機械,金属彫刻機械,金属描画機械金属コーティング機械金属鋳造機械

標準:

DIN、ASTMのGOST、GB、JIS、ANSI、BS

CNC加工かどうか:

CNC加工

マイクロマシニングかどうか:

微細加工

加工方法:

クライアント&プライム工学図

パッケージの詳細:

木製ケース

供給の能力:

月あたり10,000個

ハイライト:

2000n-m Rated Torque Flexible Star Couplings

5000 RPM Maximum Speed Shaft Couplings

Lubrication-Free Maintenance Spider Couplings

製品説明

Custom OEM Flexible Star Couplings

High-performance flexible star couplings designed for pump shaft applications, available in KTRS Rotex Gr 42, 75, 55 configurations with spider claw design and multiple connection options including hole keyway and spline.

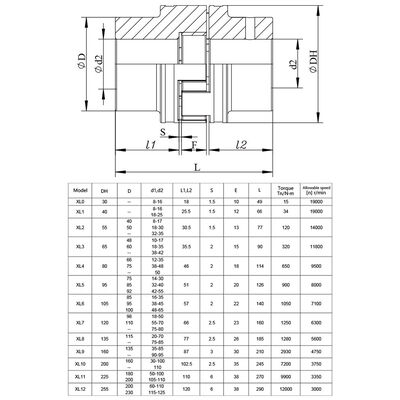

Technical Specifications

Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction Works, Energy & Mining, Agricultural
Material	Steel
Standard or Nonstandard	Standard
Structure	Jaw / Spider
Warranty	1 Year
Bore Diameter	30MM
Maximum Speed	5,000 RPM
Rated Torque	2000 N·m
Type	Flexible

Product Features & Benefits

Flexible flower-shaped couplings are elastic couplings widely used in mechanical transmission systems, featuring compact structure and stable performance suitable for various operating conditions.

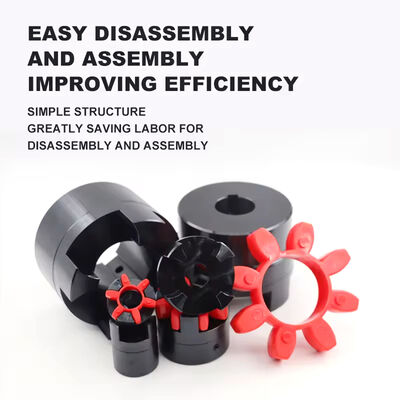

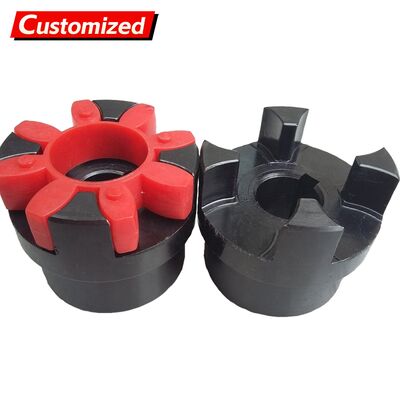

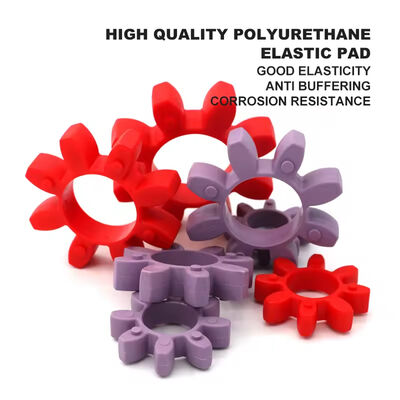

Structural Composition: Consists of two metal claw discs and a plum-shaped elastomer (typically polyurethane or rubber), transmitting torque through engagement between elastomer and claw discs
Vibration Damping: Elastomer effectively absorbs vibration and shock loads, reducing operational noise and protecting transmission systems
Strong Misalignment Compensation: Compensates for axial, radial, and angular installation deviations, accommodating minor misalignment scenarios
Lubrication-Free Maintenance: Requires no lubrication, resists oil contamination, and provides electrical insulation for harsh environments
Wide Application Range: Commonly used in servo motors, pumps, compressors, and automation equipment, particularly suited for medium-to-high speed applications with frequent starts and stops

Product Images
