High-Torque Spline Shaft Coupling with Nylon Sleeve for 8mm ~ 25mm Bore Diameter Flexible Motor Coupling

High-Torque Spline Shaft Coupling with Nylon Sleeve for 8mm ~ 25mm Bore Diameter Flexible Motor Coupling

ブランド名: WeSeW
モデル番号: CNC0184
MOQ: 1個
価格: US$5~US$50 per pc
支払条件: T/T、ウェスタンユニオン
供給能力: 月あたり10,000個
詳細情報
起源の場所:
中国
証明:
CE, ISO9001/UL
名前:
スピンシャフト結合
OEM/ODM:
OEM ODM CNC フライス盤 旋盤加工サービス
材料の能力:
アルミニウム、真鍮、青銅色、銅の、堅くされた金属
応用:
金属切断機械,金属直線機械,金属スピニング機械,金属加工機械の部品,金属鍛造機械,金属彫刻機械,金属描画機械金属コーティング機械金属鋳造機械
標準:
DIN、ASTMのGOST、GB、JIS、ANSI、BS
CNC加工かどうか:
CNC加工
マイクロマシニングかどうか:
微細加工
加工方法:
クライアント&プライム 工学図
パッケージの詳細:
木製ケース
供給の能力:
月あたり10,000個
ハイライト:

High-Torque Spline Shaft Coupling

,

Nylon Sleeve Flexible Coupling

,

8mm ~ 25mm Bore Diameter Motor Coupling

製品説明
Custom XL12 Star Coupling Elastic Spacer Sakura Coupling
High-torque motor coupling designed for water pumps and air compressors, featuring flexible design with vibration damping capabilities.
Product Specifications
Applicable Industries Manufacturing Plant, Machinery Repair Shops, Energy & Mining
Material Steel
Standard or Nonstandard Standard
Structure Universal
Warranty 1 year
Flexible or Rigid Flexible
Outer Diameter 40mm
Bore Diameter (d1~d2) 8mm ~ 25mm
Length 66mm
Bore Type Finished Bore
Surface Treatment Blackening
Minimum Order Quantity 1 Set
Key Features & Benefits
  • Simple Structure: Consists of two toothed metal hubs and an internally toothed nylon sleeve for efficient power transmission
  • Vibration Damping & Noise Reduction: Nylon material provides excellent elasticity to absorb vibrations and reduce operational noise
  • Maintenance-Free Design: Wear-resistant, corrosion-resistant nylon sleeve requires no lubrication, ideal for harsh operating conditions
  • Easy Installation: Assembly and disassembly require no axial movement, saving maintenance time
  • Wide Application Range: Suitable for fans, pumps, machine tools, and equipment with moderate rotational speeds and vibration damping requirements
Product Images

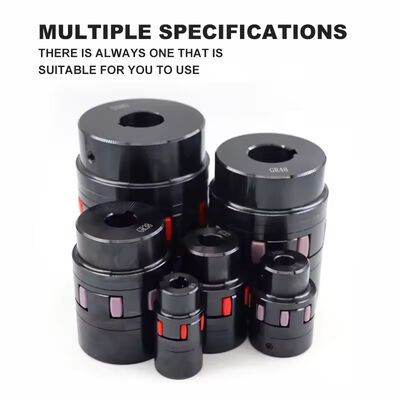

High-Torque Spline Shaft Coupling with Nylon Sleeve for 8mm ~ 25mm Bore Diameter Flexible Motor Coupling 0

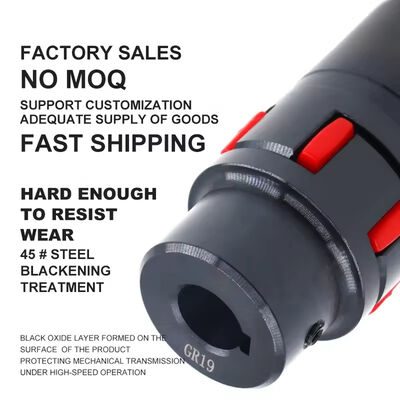

High-Torque Spline Shaft Coupling with Nylon Sleeve for 8mm ~ 25mm Bore Diameter Flexible Motor Coupling 1

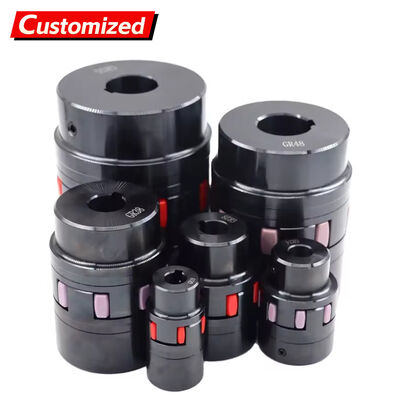

High-Torque Spline Shaft Coupling with Nylon Sleeve for 8mm ~ 25mm Bore Diameter Flexible Motor Coupling 2

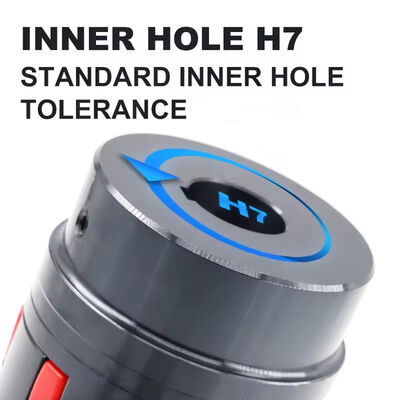

High-Torque Spline Shaft Coupling with Nylon Sleeve for 8mm ~ 25mm Bore Diameter Flexible Motor Coupling 3

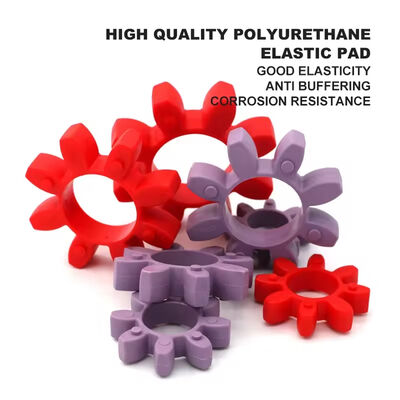

High-Torque Spline Shaft Coupling with Nylon Sleeve for 8mm ~ 25mm Bore Diameter Flexible Motor Coupling 4

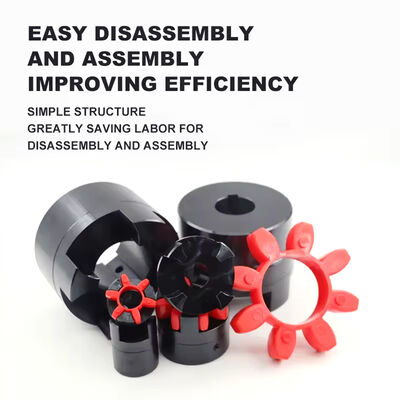

High-Torque Spline Shaft Coupling with Nylon Sleeve for 8mm ~ 25mm Bore Diameter Flexible Motor Coupling 5
