OEM Customized Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling with Keyway Tapered Structure and 2000n-m Rated Torque

ブランド名:	WeSeW
モデル番号:	CNC0184
MOQ:	1個
価格:	US$5~US$50 per pc
支払条件:	T/T、ウェスタンユニオン
供給能力:	月あたり10,000個

詳細情報

製品説明

詳細情報

起源の場所:

中国

証明:

CE, ISO9001/UL

名前:

スピンシャフト結合

OEM/ODM:

OEM ODM CNC フライス盤旋盤加工サービス

材料の能力:

アルミニウム、真鍮、青銅色、銅の、堅くされた金属

応用:

金属切断機械,金属直線機械,金属スピニング機械,金属加工機械の部品,金属鍛造機械,金属彫刻機械,金属描画機械金属コーティング機械金属鋳造機械

標準:

DIN、ASTMのGOST、GB、JIS、ANSI、BS

CNC加工かどうか:

CNC加工

マイクロマシニングかどうか:

微細加工

加工方法:

クライアント&プライム工学図

パッケージの詳細:

木製ケース

供給の能力:

月あたり10,000個

ハイライト:

Five-Point Design Spline Shaft Coupling

Keyway Tapered Structure Flexible Coupling

2000n-m Rated Torque Rectangular Spline Coupling

製品説明

OEM Customized Machine Learning Five-Point Design Flexible Steel Rectangular Spline Shaft Coupling

High-precision flexible steel rectangular spline shaft coupling with keyway tapered structure, designed for demanding industrial applications requiring reliable torque transmission and precise alignment.

Technical Specifications

Applicable Industries	Manufacturing Plant, Machinery Repair Shops, Construction Works, Energy & Mining, Other
Material	Steel
Standard or Nonstandard	Standard
Structure	Universal
Warranty	1 year
Bore Diameter	100mm
Maximum Speed	5,000 RPM
Rated Torque	2000 N·m
Type	Flexible
Outer Diameter	145mm
Bore Diameter Range	24mm ~ 65mm
Length Range	163mm - 323mm
Bore Type	Finished Bore
Surface Treatment	Blackening
Minimum Order Quantity	1 Set

Key Features & Benefits

High Load Capacity: Multi-tooth structure design with large total contact area and uniform force distribution for substantial torque transmission in heavy-duty applications
Excellent Alignment and Guidance: Numerous evenly distributed teeth ensure high alignment precision between shaft and hub, ideal for high-speed operation and precision transmission systems
High Structural Strength: Shallow keyways minimize stress concentration at tooth roots, effectively reducing strength degradation in shafts and hubs
Wide Application Range: Commonly used in automotive transmissions, machine tool spindles, hydraulic equipment, and other applications demanding high centering accuracy and reliability
Diverse Compatibility: Available in rectangular splines (small-diameter centering, easy machining) and involute splines (self-centering, higher strength)

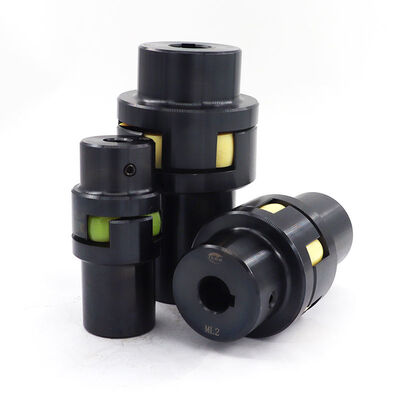

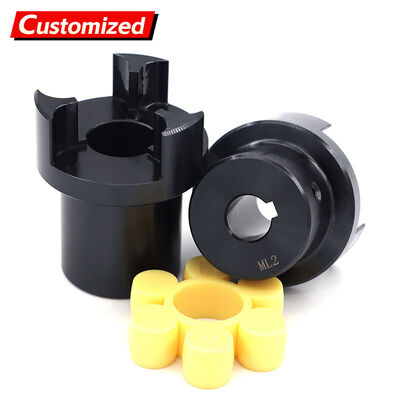

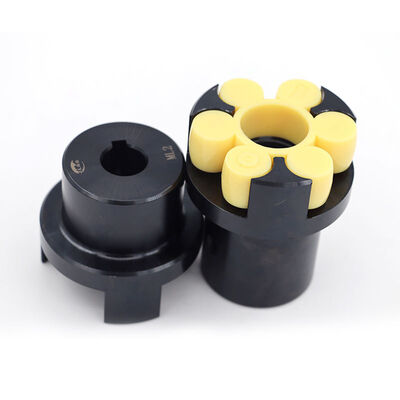

Product Images
