| ブランド名: | WeSeW |
| モデル番号: | カイキシ |
| MOQ: | 1 PC |
| 価格: | US$1200~US$50,000/set |
| 支払条件: | T/T、ウェスタンユニオン |
| 供給能力: | 月額10000pcs |

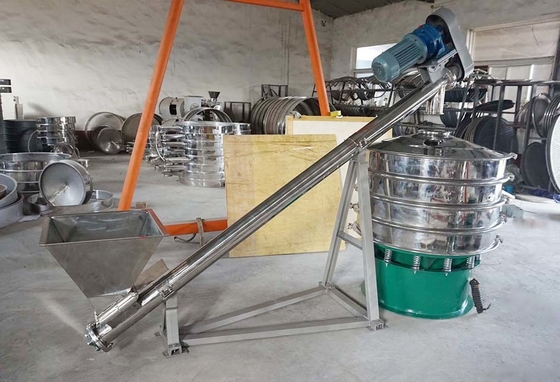

custom Automatic Cement Powder Inclined Auger Screw Conveyor Feeder Cement Screw Portable Conveyor for Truck Unloading
| Belt Material | carbon steel |
| Material | Stainless Steel, carbon steel |
| Special Feature | Durable |
| Dimension(L*W*H) | Customer Request |
| Layer | 1 Layer |
| Speed | 1500 rpm |
| Applicable Industries | Machinery Repair Shops, Construction works, Energy & Mining |
| Warranty | 1 Year |
| Product name | Cement Flexible Screw Conveyor Price Automatic Screw Flight |
| Usage | Material Transimission |
| Application | Construction |
| Color | Customers' Request |
| Installation | Engineer's Guide |
| Length | Customer's Option |
| Installation angle | 0~60 |
Cement Flexible Screw Conveyor Price Automatic Screw Flight uses revolving screw to move the conveyer material in fixed casing, the bearings of head and tail are moved to shell, hanger bearing adopts sleeve bearing, which have dustproof sealing device, bearing bush usually adopts powder metallurgy,convey concrete adopts felt bushing, hanger shaft and screw shaft are connected by slider.
| Model |
Diameter
(mm)
|
Rated speed
(r/min)
|
Reference capacity
(m³/h)
|
Motor power
(Kw)
|
Admission biggest gradient
(o)
|
| LS114 | 114 | 84-130 | 0.1-1 | 2.2-18.5 | ≤60 |
| LS133 | 133 | 1-2 | |||
| LS159 | 159 | 3-5 | |||
| LS219 | 219 | 5-15 | |||
| LS245 | 245 | 15-20 | |||
| LS273 | 273 | 20-30 | |||
| LS315 | 315 | 28-40 | |||
| LS400 | 400 | 35-45 | |||
| LS500 | 500 | 45-70 | |||
| LS600 | 600 | 60-100 |
Product features
1.The large bearing capacity, safe and reliable.
2.Strong adaptability, easy installation and maintenance, long service life.
3.The machine is small in size, high speed, ensure rapid delivery uniformity.
4.The discharge end is equipped with cleaning device, low noise, strong adaptability, in and out of the mouth position arranged flexibly.
5.Good sealing, shell made of seamless steel tube end use flange connection each other as a body, good rigidity.
